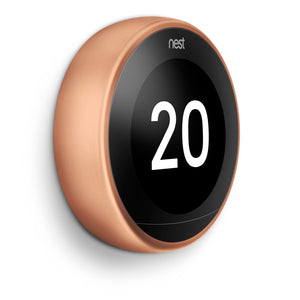

The 3rd generation Nest Learning Thermostat is slim, elegant and refined. The large, clear display and Remote Reading let you see the temperature, time and weather even when you are across the room. The Nest thermostat learns the temperature you prefer and then programs itself. He knows the time it takes to heat your home and makes you find it warm when you arrive. When you go away it turns off, to save you energy. In addition, thanks to the Nest app, you can change the temperature or check your energy consumption history wherever you are.
Connected and programmable thermostat that allows you to control the heating system more efficiently.
Ability to change the temperature and more from your smartphone (iOS and Android).
Smart programming to help you save energy. Nest Learning Thermostat intelligently programs itself based on your preferred temperatures, the insulation of your home and the weather conditions outside.
Use your smartphone location and built-in activity sensors to avoid heating an empty house.
Compatibility with most autonomous heating systems (gas boilers, oil boilers, condensing boilers, heat pumps, underfloor heating, OpenTherm systems).
Color • Stainless steel • Copper • Black • White
Display • 24-bit color LCD • Resolution 480 x 480 at 229 ppi • 5.3 cm diameter
Sensors • Temperature • Humidity • Short range activities • Long range business • Ambient light
Dimensions and weight • Display - Weight: 206 g - Diameter: 8.4 cm - Height: 2.7 cm • Base - Weight: 38 g - Diameter: 7.7 cm - Height: 1.2 cm • Assembled - Weight: 244 g - Diameter: 8.4 cm - Height: 3.2 cm Heat Link • Weight: 198 g • Dimensions: 11 x 11 x 2.8 cm
Remote control requirements • Wi-Fi connection with Internet access • Nest app on smartphone or tablet with iOS or Android
Languages • Italian • English • French • Dutch • Spanish
Wireless • Wi-Fi 802.11b / g / n 2.4 GHz, 5 GHz • 802.15.4 at 2.4 GHz • Bluetooth Low Energy (BLE)
Battery • Lithium-ion, integrated and rechargeable
Energy consumption • Less than 2 kWh / month
Guarantee • 2 year limited warranty • For assistance, visit nest.com/eu/support ErP control class
• ErP Class IV (+ 2%) when connected via the On / Off heating system • ErP Class VI (+ 4%) when connected via OpenTherm
COMPATIBILITY • The Nest Learning Thermostat is compatible with many central heating systems, including: - Combined boilers - Storage boilers with hot water control - Heat pumps (heating only) - Zone systems - District heating with control solenoid valve
• Control systems: - On off - OpenTherm
• Heat Link: - Relays support 3 (1) A load at 230VAC on both the satisfed connector and the heating cable
- Input power 100 - 240 V AC, 50/60 Hz
- The output power supplies 12 V DC to the thermostat
CONTENTS OF THE PACKAGE • Display • Base • Heat Link • Cover plate optional • Wall fixing screws • Installation and warranty guide • Nest Pro installation sheet • Self-programming • Remote control with the Nest app • At home / away from home • Compatibility with OpenTherm • True Radiant • Hot water control • History of energy consumption • Nest Bulletin • Remote reading
